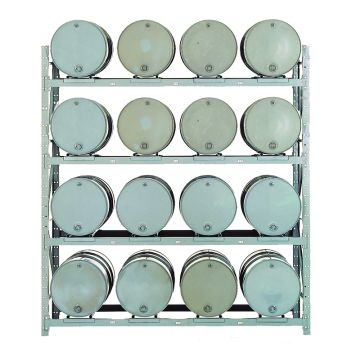

Drum Pallet Rack – 16-Drum
Satisfy high-capacity drum storage requirements with this heavy-duty drum pallet rack, designed to store 30 or 55-gallon drums with the flexibility to convert to palletized storage when needed. Each level supports 4,825 lbs, and the rack assembles easily by bolting load beams to the all-welded 3" structural channel upright frame — no special tools required.
Frames are punched full height on 4" centers, allowing 2" vertical adjustability of the beams to fit your storage needs. Included portable drum cradles, made of 1¼" diameter tubing, minimize drum wear and can be repositioned or removed entirely from any level to switch to palletized storage. Finished in gray enamel and ships knocked down for efficient freight handling.
Starting a new storage system? Choose the Starter unit above — it includes everything you need to begin: two upright frames, load beams, and cradles.
Already have a Starter unit? Choose the Add-On option to double your capacity to 32 drums using your existing frame structure.
Specifications
| Specification | Starter (DPR16) | Add-On (DPR16-A) |
|---|---|---|
| Levels | 4 | 4 |
| Total Capacity | 19,300 lb | Extends to 32-drum / 38,600 lb combined |
| Per-Level Capacity | 4,825 lb | 4,825 lb |
| Includes | 2 upright frames, load beams, cradles | 1 upright frame, load beams, cradles |
| Overall Height | 120" | 120" |
| Width | 105" | 102" |
| Depth | 36" | 36" |
| Weight | 651 lbs | 558 lbs |
| Standard Finish | Gray enamel | Gray enamel |
Note: The Add-On unit requires an existing DPR16 Starter unit on-site. It is not a standalone rack and cannot be used by itself.
Shipping & Returns
Shipping
This product ships as industrial freight via motor carrier from Omaha, NE. A forklift or suitable lifting device is required to unload — standard liftgate service is not available.
Freight is calculated based on your location and order size. Contact us before ordering for a freight quote specific to your facility.
Estimated lead times based on total order value:
| Order Value | Lead Time |
|---|---|
| $0 – $1,000 | 1–2 weeks |
| $1,001 – $5,000 | 2–3 weeks |
| $5,001 – $10,000 | 2–4 weeks |
| $10,001 – $20,000 | 4–6 weeks |
| $20,001 – $40,000 | 5–7 weeks |
| $40,001+ | 8 weeks |
Lead times are based on total order value and may vary. Contact us to confirm timing before ordering. If you have a delivery deadline or need to hold shipment until your facility is ready, we can coordinate directly with the supplier.
Freight quotes are subject to change without notice. A 3.9% service fee applies to all credit card transactions. Tracking provided via email once your order ships.
Returns
| Return Policy | Details |
|---|---|
| Return Window | 30 days from delivery |
| Condition Required | Unused, unassembled, in original packaging with all hardware |
| Restocking Fee | 20% |
| Damaged / Missing Items | Additional 20% refurbished fee applies |
| Return Shipping | Buyer responsible for all return freight costs |
| Special Orders | Not returnable for credit |
To initiate a return, contact us at support@mywarehouseworld.com or (929) 577-4339 within 30 days of delivery.
