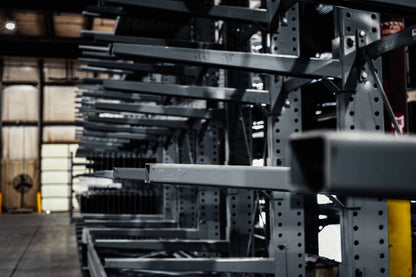

SU10 — Heavy Duty Single-Sided Cantilever Rack Starter Kit (10')

Already have this starter unit? View the matching AU10 Heavy Duty Single-Sided Cantilever Rack Add-On Kit →

The SU10 is a Series 4000 Standard Heavy Duty cantilever rack starter kit that combines extended vertical reach with deep arm capacity for facilities storing long, heavy structural materials. At 10' tall with 36" arms and 12 storage positions, it's engineered for operations that need both height and depth — structural steel, long extrusions, heavy bar stock — in a single-sided configuration.

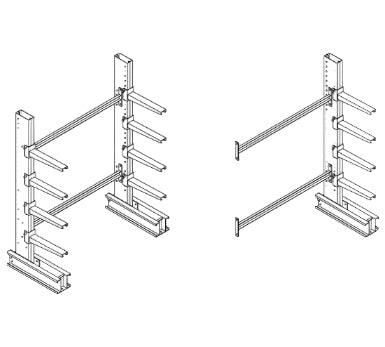

Ships complete with 2 uprights, 12 straight arms, and a brace set. Arms adjust on 3" centers.

What's Included

• 2 uprights (10' height, 49" base length)
• 12 straight arms (36" length, 1,200 lb capacity each)
• 1 brace set (72" length)
• All hardware for assembly

Why the SU10

Extended reach for long, heavy loads — The 36" arms reach deeper than the SU8's 24" arms, providing better support for wide bundles of pipe, structural tubing, and long bar stock that need more than 2 feet of arm support.

12 storage positions per bay — More levels than the SU8 with the same heavy duty construction — ideal for operations that need to organize many different lengths or grades of material in a single bay.

Grows with your operation — Add AU10 add-on units at any time to extend into a continuous row system using shared upright frames.

Forklift accessible — Open base design allows easy loading from the aisle. The base functions as an additional storage level and does not count against the rated upright capacity.

Questions before ordering? Call (929) 577-4339 or email support@mywarehouseworld.com.

Floor Anchors (Required, Not Included): Uprights must be anchored to the floor before use. MECO recommends a minimum of 2 anchors per base — 1 in the front and 1 in the back on opposite sides of the base. Each base has holes for up to 4 anchors. Recommended anchor spec: ½" × 4¼". Anchors are not sold by MECO and must be sourced independently. Building codes vary by location — consult local codes for specific requirements.

Series 4000 Standard Heavy Duty Single-sided Starter Units — Model Comparison

Arm capacity decreases at greater heights and arm lengths due to increased bending load on the upright column — a standard cantilever rack engineering characteristic. All capacities are per MECO Omaha specifications based on evenly distributed loads.

Need double-sided storage? See the SDU8, SDU10, SDU12 double-sided starter units.

Specifications

Important: Capacities are based on evenly distributed loads. Arms must never be placed on the back side of a single-sided upright. Unit must be anchored to the floor per assembly instructions.

Customization Options

Arm Lips (L Suffix)

Bolt-on 2" arm lips are available for all 12 MECO cantilever rack SKUs in this lineup, including this model. Lips extend 2" above the arm surface and are used to retain cylindrical loads — pipe, tubing, round bar — that may otherwise roll off the end of the arm.

• Applies to both arms and bases — lips bolt on to every arm and base in the unit
• No extra charge if ordered with the rack — add the "L" suffix to the model number at time of purchase (e.g. SM6 → SM6L) and lips are included at the same price
• Can be ordered separately later — lips can be field-installed at any time after purchase, though a separate order and charge will apply
• Non-structural — lips are a retention feature only and are not intended to bear any portion of the load
• Factory punched — all MECO arms are factory punched to accept bolt-on lips, so no drilling is required

To order with lips, contact us at support@mywarehouseworld.com or (929) 577-4339 and we will place the order with the L suffix at no additional cost.

Additional Customization Options

Contact us to discuss any of the following configurations:

Inclined Arms — For cylindrical loads that tend to roll, inclined arms pitch at 20° (approximately 4.36" per foot) to keep material secure on the rack.

Bolt-On Pipe Sockets — Field-installable pipe sockets (1⅜" inside diameter) provide an additional stop at the end of the arm for round stock and tubing.

Drop-In Deck Support Saddles — Convert the SU10 to a decked system for storing boxes, cartons, or furniture. Pre-engineered to accommodate 2×4 cross supports.

Custom Colors — Available at additional cost.

To discuss customization options, call (929) 577-4339 or email support@mywarehouseworld.com.

Shipping & Returns

Shipping Policy

This product ships as industrial freight via motor carrier from Omaha, NE. A forklift or suitable lifting device is required to unload — standard liftgate service is not available.

Freight is calculated based on your location and order size. Contact us before ordering for a freight quote specific to your facility.

Estimated lead times based on total order value:

Lead times are based on total order value and may vary. Contact us to confirm timing before ordering. If you have a delivery deadline or need to hold shipment until your facility is ready, we can coordinate directly with the supplier.

Freight quotes are subject to change without notice. A 3.9% service fee applies to all credit card transactions. Tracking provided via email once your order ships.

Return Policy

To initiate a return, contact us at support@mywarehouseworld.com or (929) 577-4339 within 30 days of delivery.
