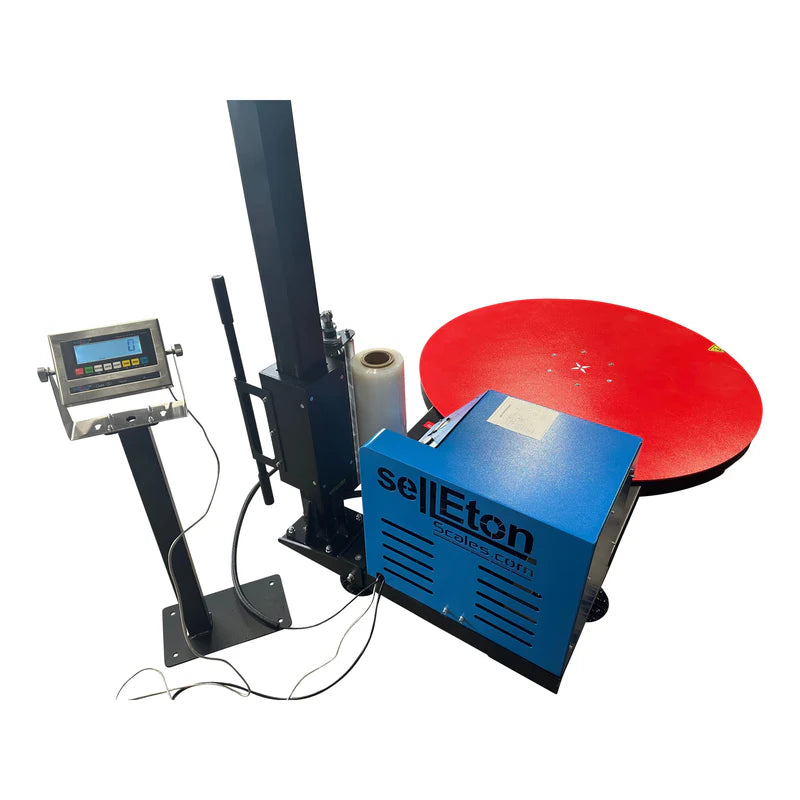

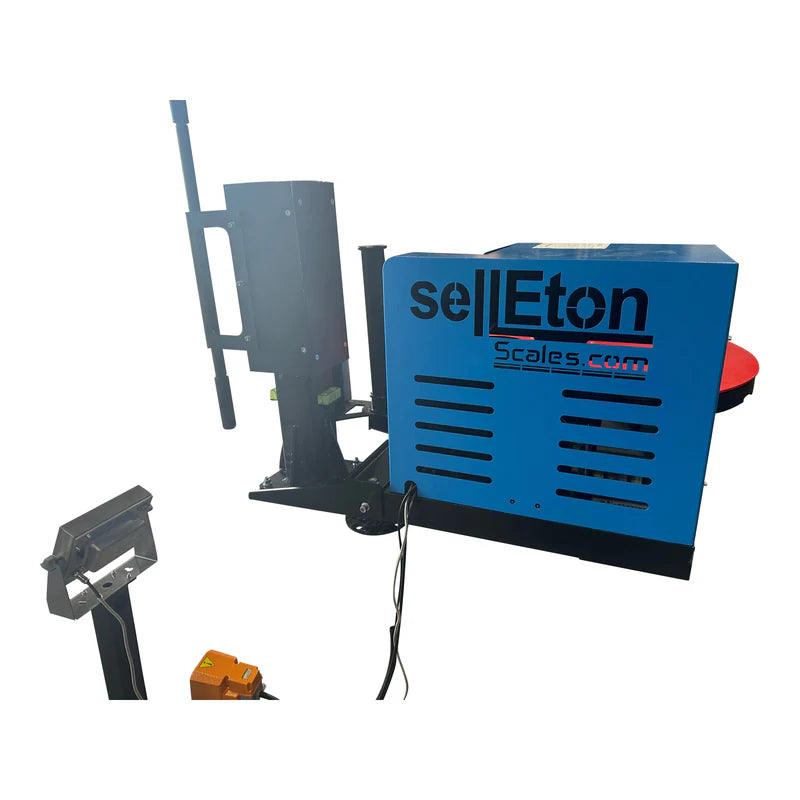

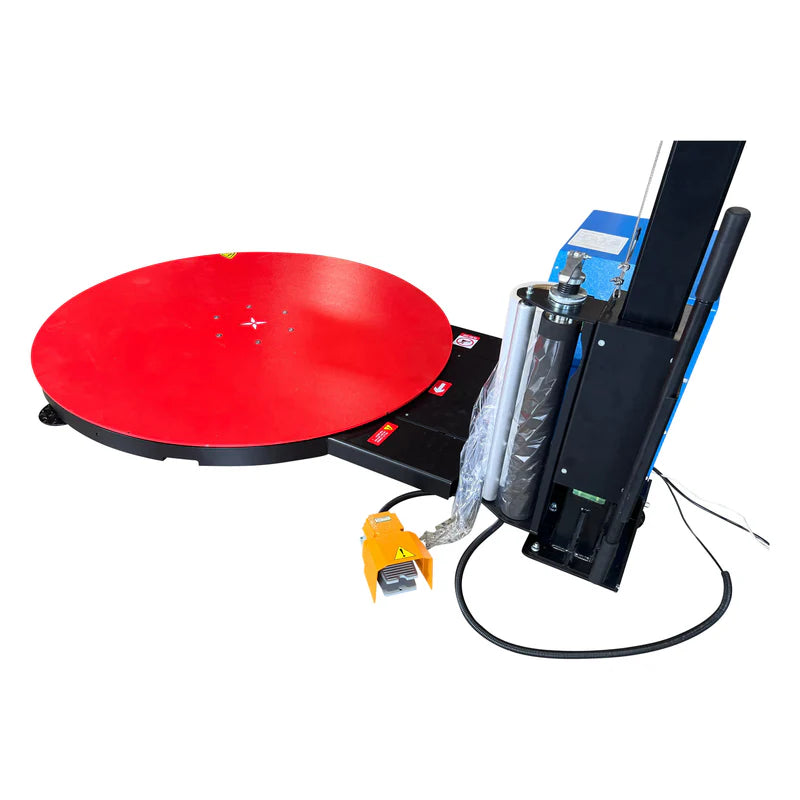

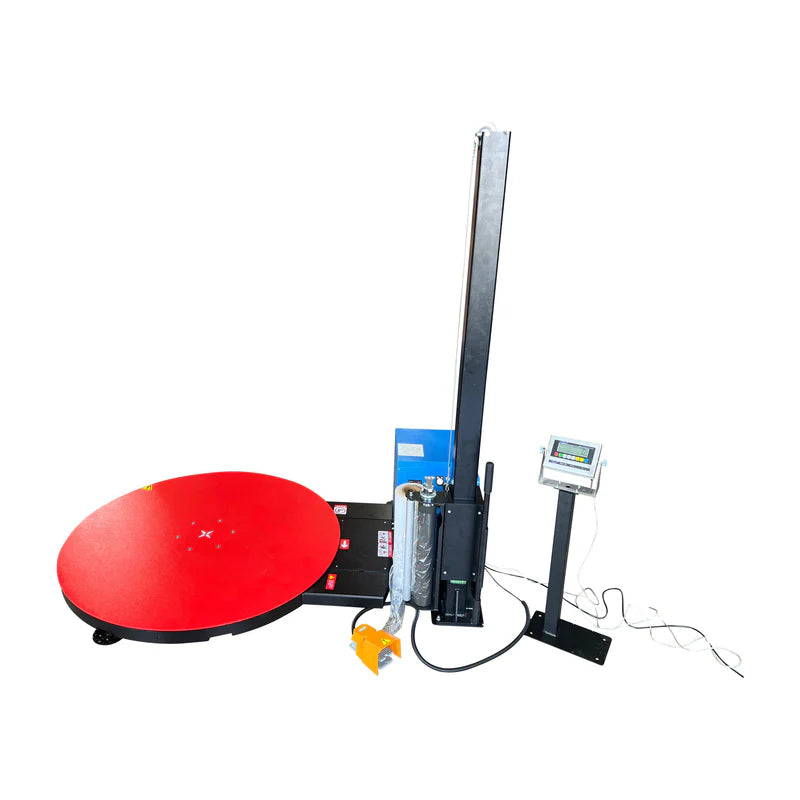

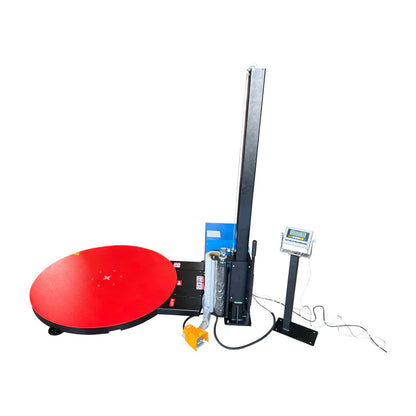

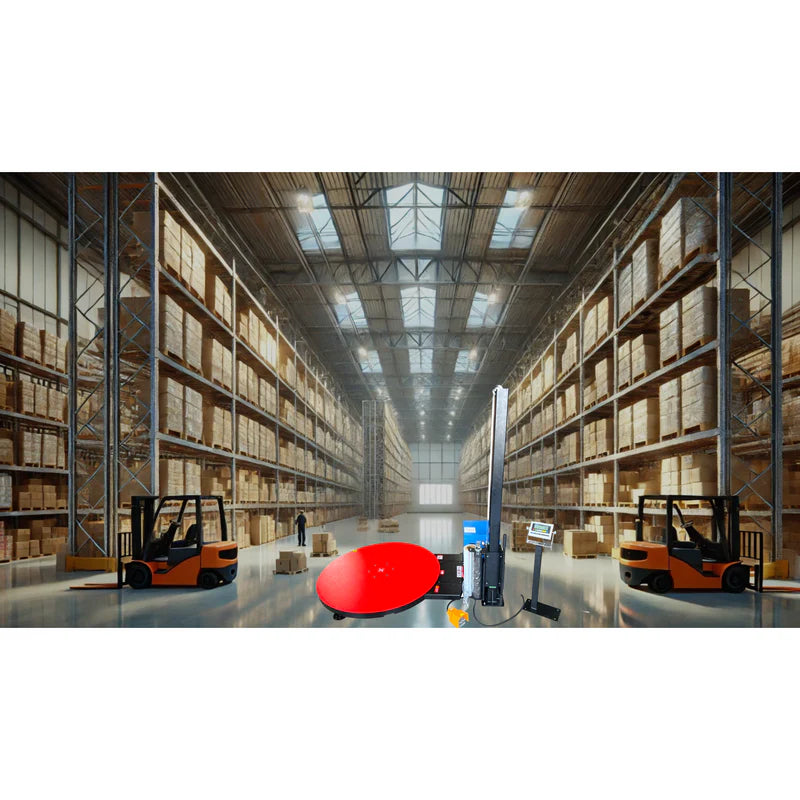

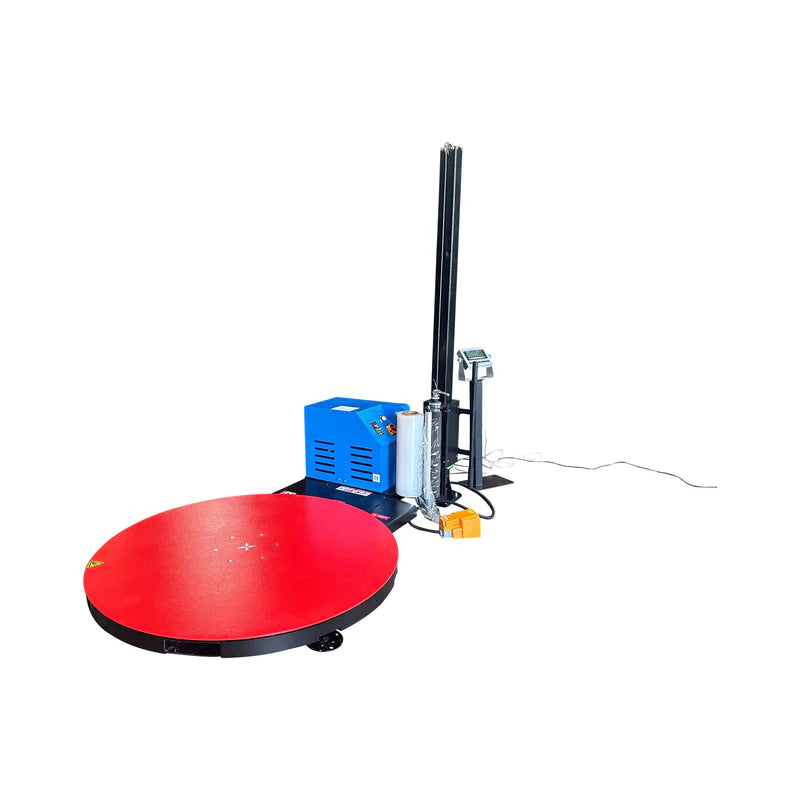

SL-7100-W60 Turntable Pallet Wrapping Machine with Integrated Scale

Integrated Weighing & Wrapping The built-in scale system weighs and wraps simultaneously — no repositioning pallets between separate stations. Every load leaves your floor documented and secured in a single pass, cutting labor time and workflow complexity.

Semi-Automatic Control System Operators can adjust wrapping speed and monitor live weight readings from one intuitive control panel. Consistent output, minimal training curve, and real-time accuracy throughout every shift.

Built for Industrial Environments A 10-foot stainless steel braided cord and integrated forklift access points make the SL-7100-W60 durable enough for demanding warehouse conditions and easy to reposition as your floor layout evolves.

Reduced Operator Fatigue The film roll bar attachment eliminates the need for manual lifting during film changes, reducing physical strain over long wrapping sessions and keeping productivity steady throughout the day.

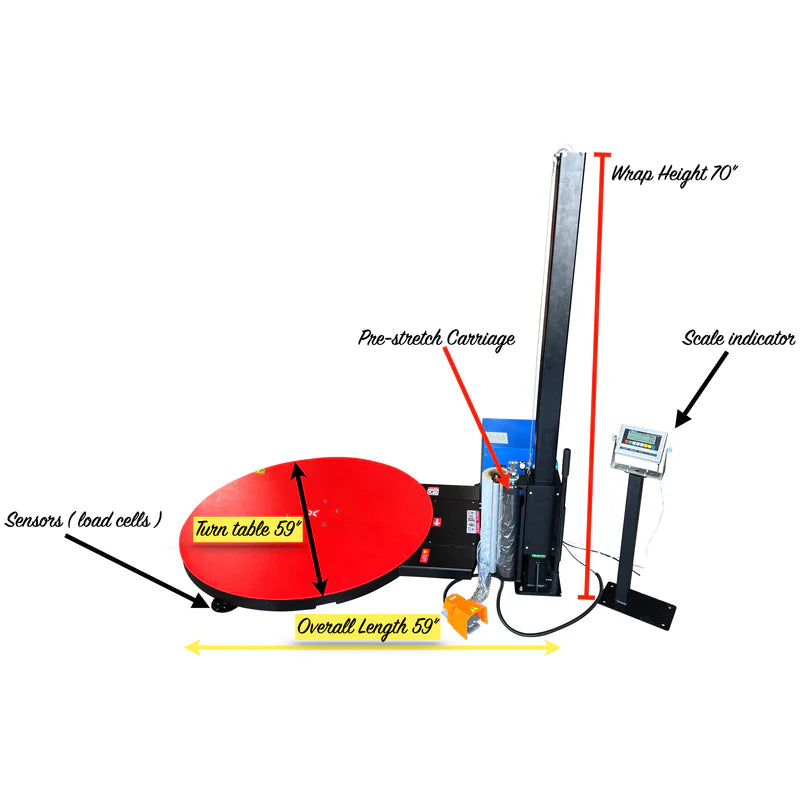

Compact Footprint, Industrial Capacity At 85" × 59", this machine is designed for facilities where floor space is limited but throughput demands aren't. It fits where other solutions don't — without compromising on capability.

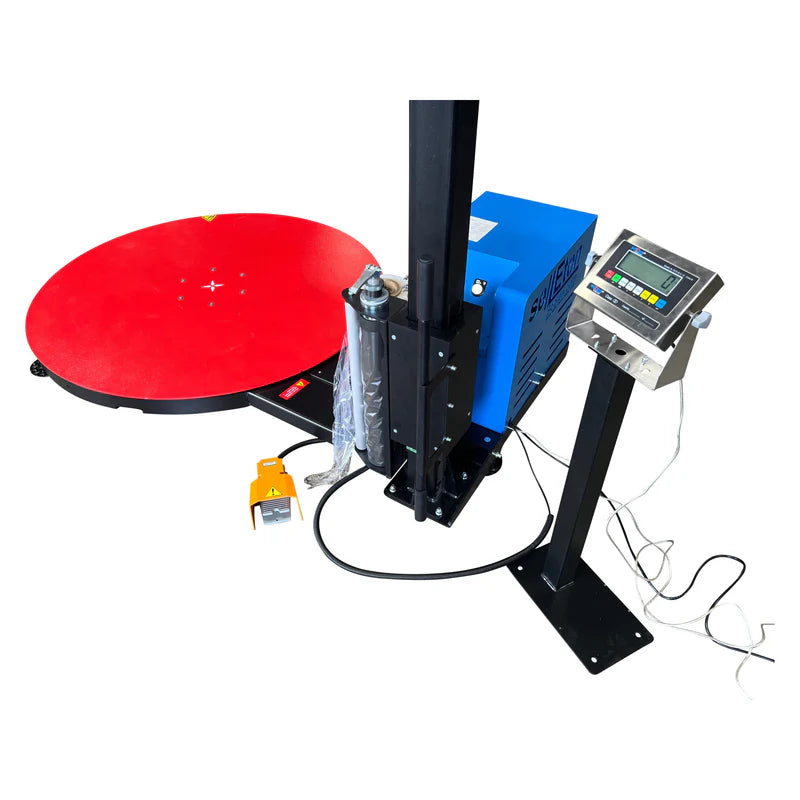

Continuous Power Operation Includes the SL-7510-SS-C Stainless Steel Indicator with rechargeable battery and AC adapter backup. Selectable lb/kg display supports your documentation and compliance requirements.

Specifications

Indicator Key Features:

• Enclosure Options: Stainless Steel, or IP67 NEMA 4X splash proof Stainless Steel.
• Power Options: Includes an AC adapter;  rechargeable battery included.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload / under-load alarms and an automatic error warning alarm.
• Display: 1" LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization & Accessories

Tailor the SL-7100-W60 to your specific operational requirements:

• Printer Integration — Connect a compatible printer for on-the-spot weight documentation and streamlined record-keeping
• Ramp Access — Optional ramps for safe, efficient loading and unloading via carts or pallet jacks
• Scoreboard Display — Available in six sizes for high-visibility weight readout at a distance from the standard LCD indicator
• Bumper Guards — Protective guards to shield the scale from accidental forklift or machinery contact
• Output Options — 4–20mA or 0–5V relay outputs for seamless integration with existing warehouse management or data systems

Outdoor Use Note: For outdoor or exposed environments, a stainless steel indicator, stainless steel load cells, & a stainless steel junction box are required to ensure rust resistance and measurement accuracy.
