Roll-Out Shelf Rack 36" Wide 72" High – 3 Shelves
Already have this starter unit? View the matching RSR336-3A / RSR346-3A Add-On Unit →
100% shelf extension. 2,000 lb per shelf. Built for industrial storage that demands access.

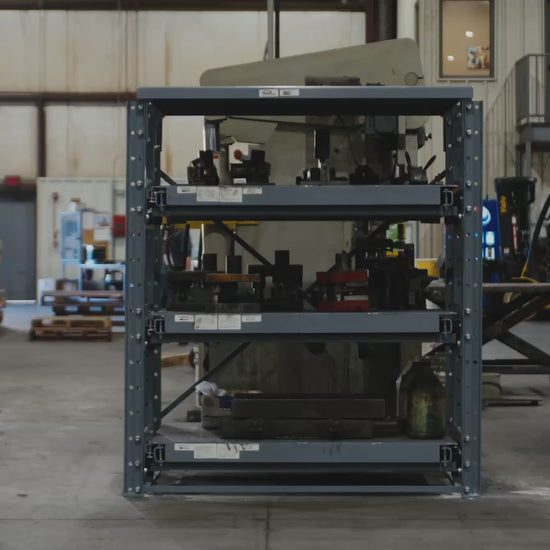

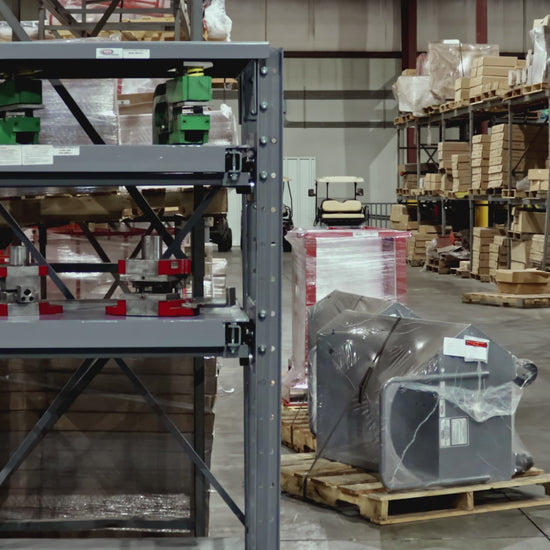

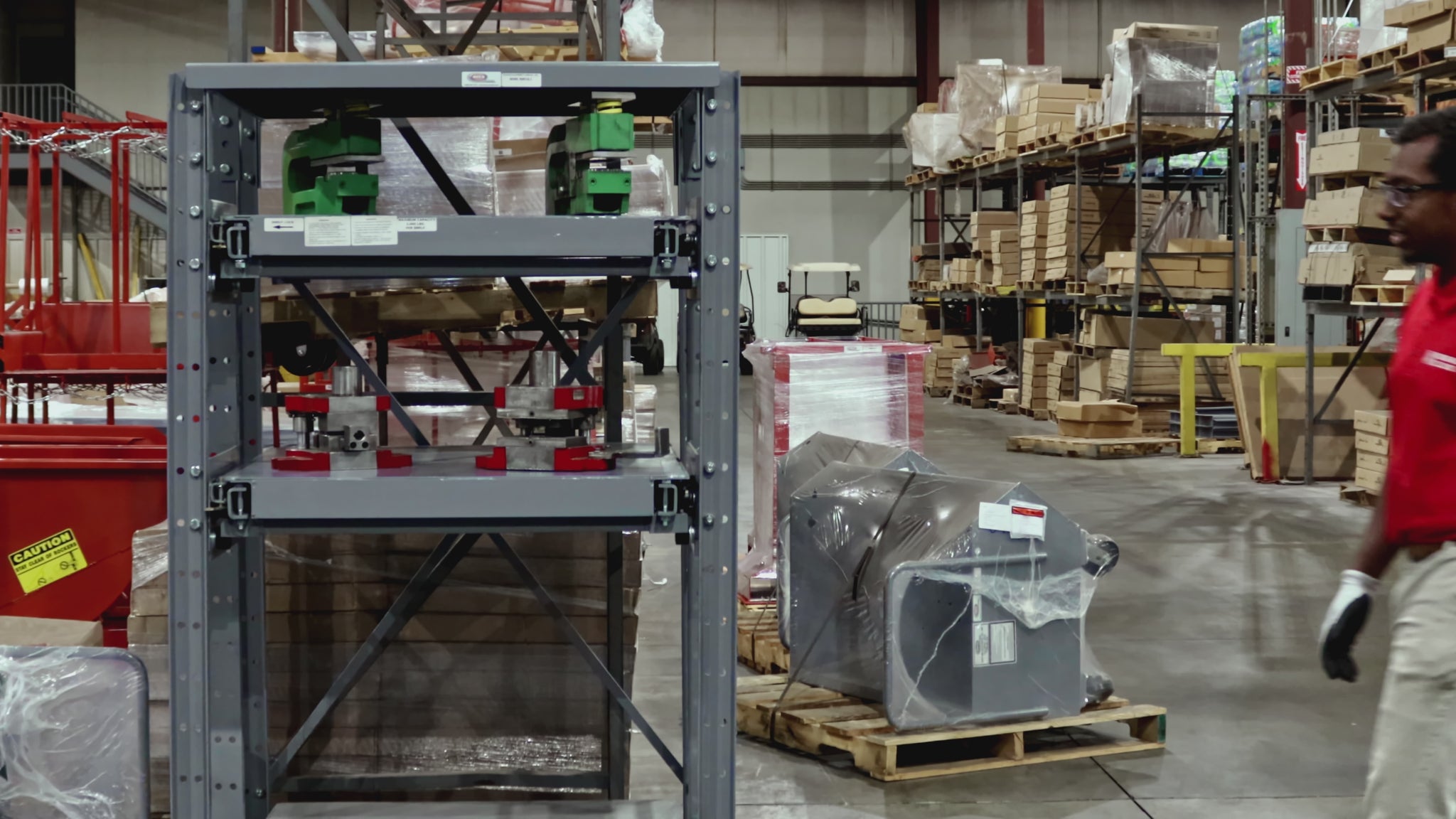

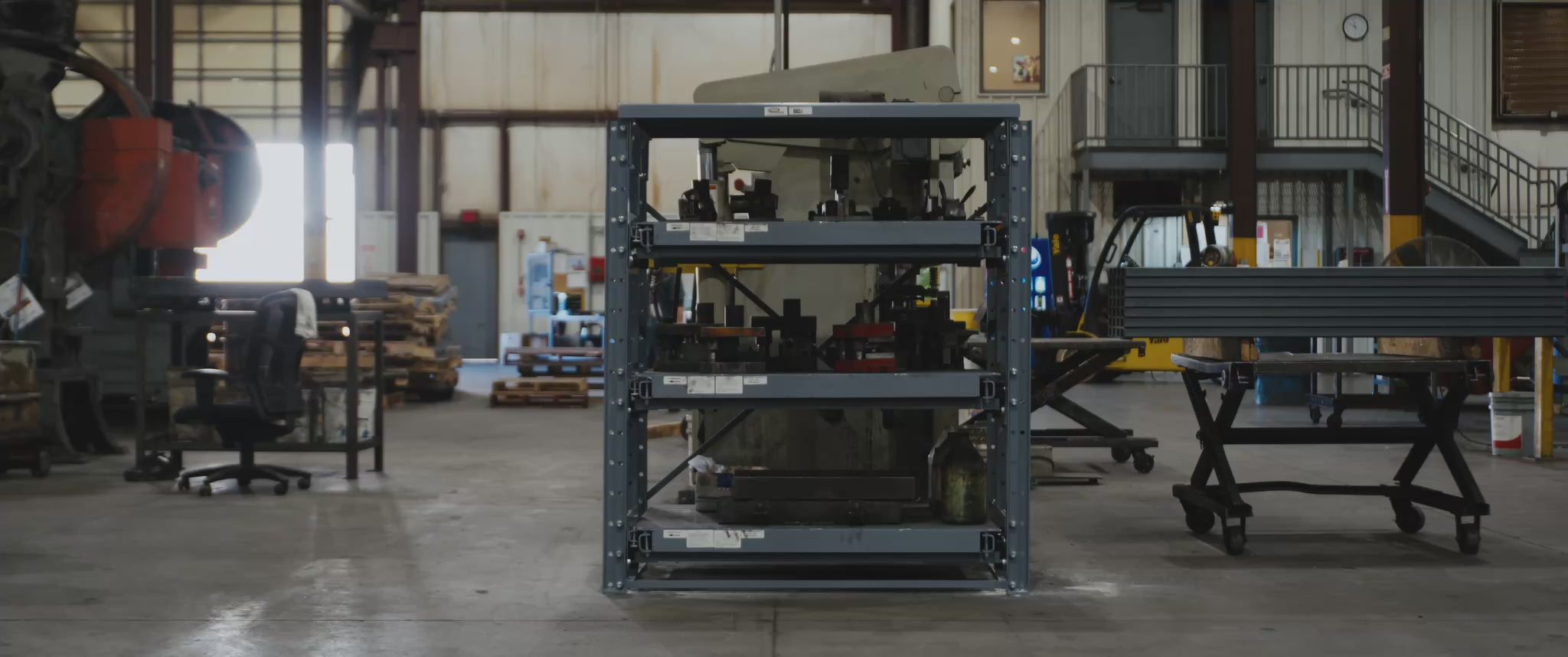

The MECO Omaha Roll-Out Shelf Rack is engineered for facilities that store heavy dies, fixtures, tooling, engine parts, and industrial equipment that needs to be organized, secure, and instantly accessible. Unlike standard shelving where reaching items at the back requires unloading the front, every roll-out shelf extends fully on a ball roller track system — giving you complete access to the entire shelf surface without moving anything around it.
At 36" wide and 72" high, this unit includes 3 roll-out shelves plus 1 fixed top shelf — 4 usable storage levels with a combined capacity of up to 8,000 lb. At 72" high, this is the most popular height in the RSR lineup — tall enough to maximize vertical space while remaining easy to load from floor level. Choose 36" or 48" shelf depth depending on the size of your stored items and available floor space.
Ships knocked down with all components included. Assembly required — typically completed by two people with standard hand tools and a torque wrench. Floor anchors required but not included.
What's Included
- Structural 3" channel frame with fixed top shelf
- X-braces and floor braces
- 3 roll-out shelf assemblies with ball roller tracks and spring locks
- Shelf brackets adjustable on 2" centers
- All hardware for assembly
Note: Floor anchors are not included. Minimum 8 x ¾" anchors with 3¼" embedment depth required. Buyer is responsible for compliance with local building codes.
Why the RSR
Full shelf extension on every roll-out level — Each of the 3 roll-out shelves extends 100% on a ball roller track, locking in the extended position via a spring lock. Load and unload without reaching, repositioning, or removing other items. Pull the track assembly out first, then the shelf — one at a time, safely.
4 usable storage levels — 3 roll-out shelves plus a fixed 2,000 lb top surface give you maximum vertical utilization in a compact 72" footprint.
2,000 lb per shelf — crane or forklift loadable — Every shelf handles 2,000 lb of evenly distributed load. Items can be loaded by overhead crane or forklift, making this rack suitable for the heaviest industrial equipment.
Adjustable shelf heights — Roll-out shelf brackets mount on 2" vertical centers along the structural frame, so you can reconfigure shelf spacing as your stored items change over time.
Most popular RSR height — the 72" configuration strikes the balance between maximizing vertical storage and keeping every shelf level comfortably reachable during loading.
Built to expand — Start with this starter unit and add RSR336-3A / RSR346-3A add-on units at any time to build a continuous row system.
Questions before ordering? Call (929) 577-4339 or email support@mywarehouseworld.com.
Specifications
| Specification | Detail |
|---|---|
| Series | MECO Omaha Roll-Out Shelf Rack |
| Unit Type | Starter |
| Shelf Width | 36" |
| Overall Width | 44" (Add 8" to shelf width for overall width) |
| Shelf Depth | 36" (RSR336-3) or 48" (RSR346-3) |
| Height | 72" |
| Roll-Out Shelves | 3 (fully extending, spring-lock) |
| Fixed Top Shelf | 1 (stationary, non-adjustable) |
| Total Storage Levels | 4 |
| Capacity per Shelf | 2,000 lb (evenly distributed load) |
| Top Surface Capacity | 2,000 lb |
| Total Unit Capacity | Up to 8,000 lb |
| Shelf Adjustability | 2" centers |
| Shelf Material | 10 gauge steel |
| Frame Construction | Structural 3" channel |
| Finish | Gray enamel |
| Unit Weight | 939 lb (36" depth) / 1,118 lb (48" depth) |
| SKU | RSR336-3 (36" depth) / RSR346-3 (48" depth) |
| Add-On Unit | RSR336-3A / RSR346-3A |
| Assembly | Required — ships knocked down |
| Floor Anchors | Not included — 8 x ¾" minimum required |
Important: Capacities are based on evenly distributed loads. Extend only one shelf at a time. Do not exceed 2,000 lb per shelf. Unit must be level and anchored to the floor before use. See assembly instructions for full requirements.
Customization Options
Contact us to discuss the following:
Additional Roll-Out Shelves — Additional shelves are available for both depth configurations. Contact us for pricing.
Pre-Assembled Units — This unit is available fully pre-assembled and ready for immediate use. Ships at additional cost. Contact us for pricing and lead time.
Custom Colors — Available at additional cost.
To discuss customization options, call (929) 577-4339 or email support@mywarehouseworld.com.
