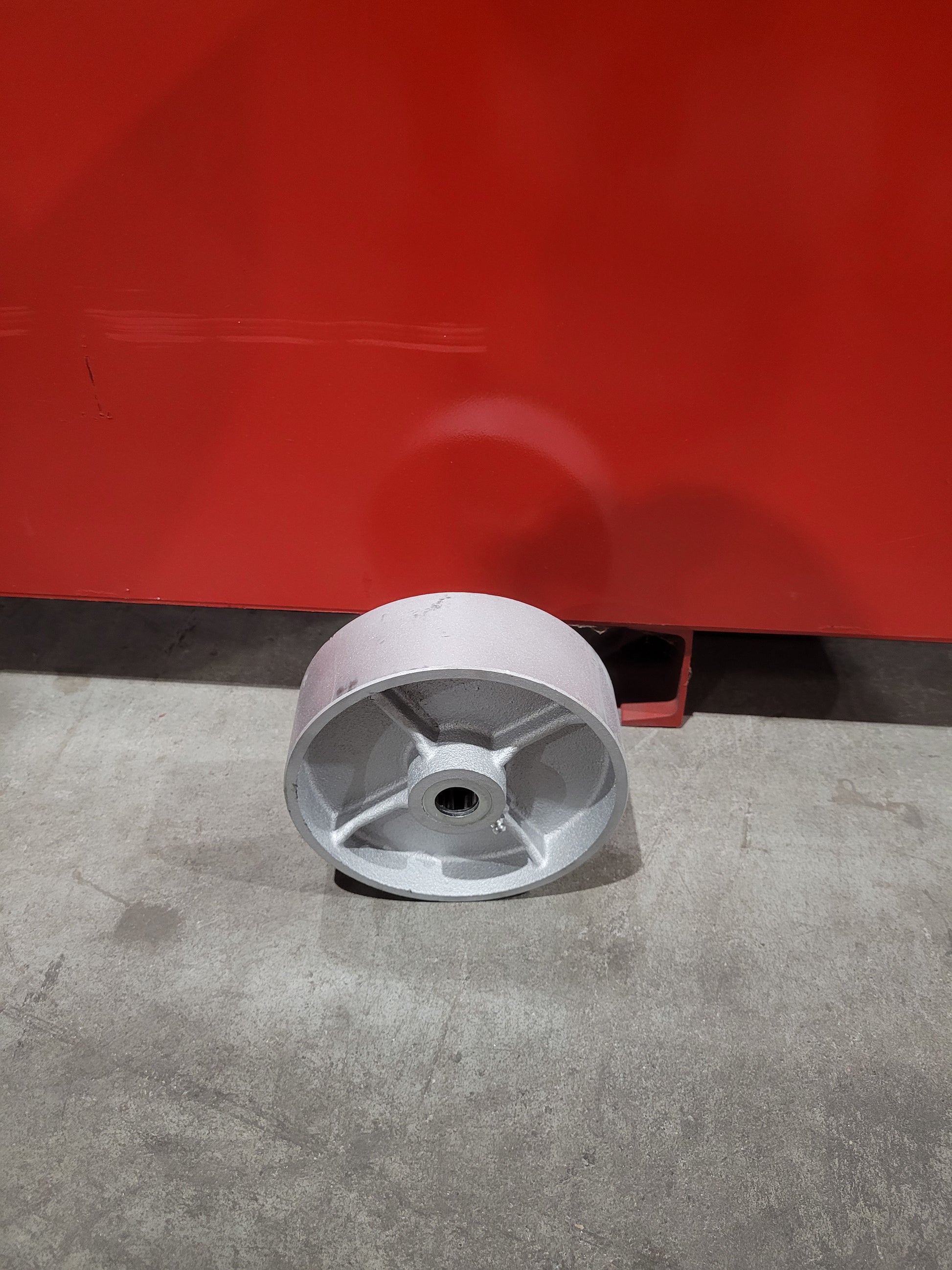

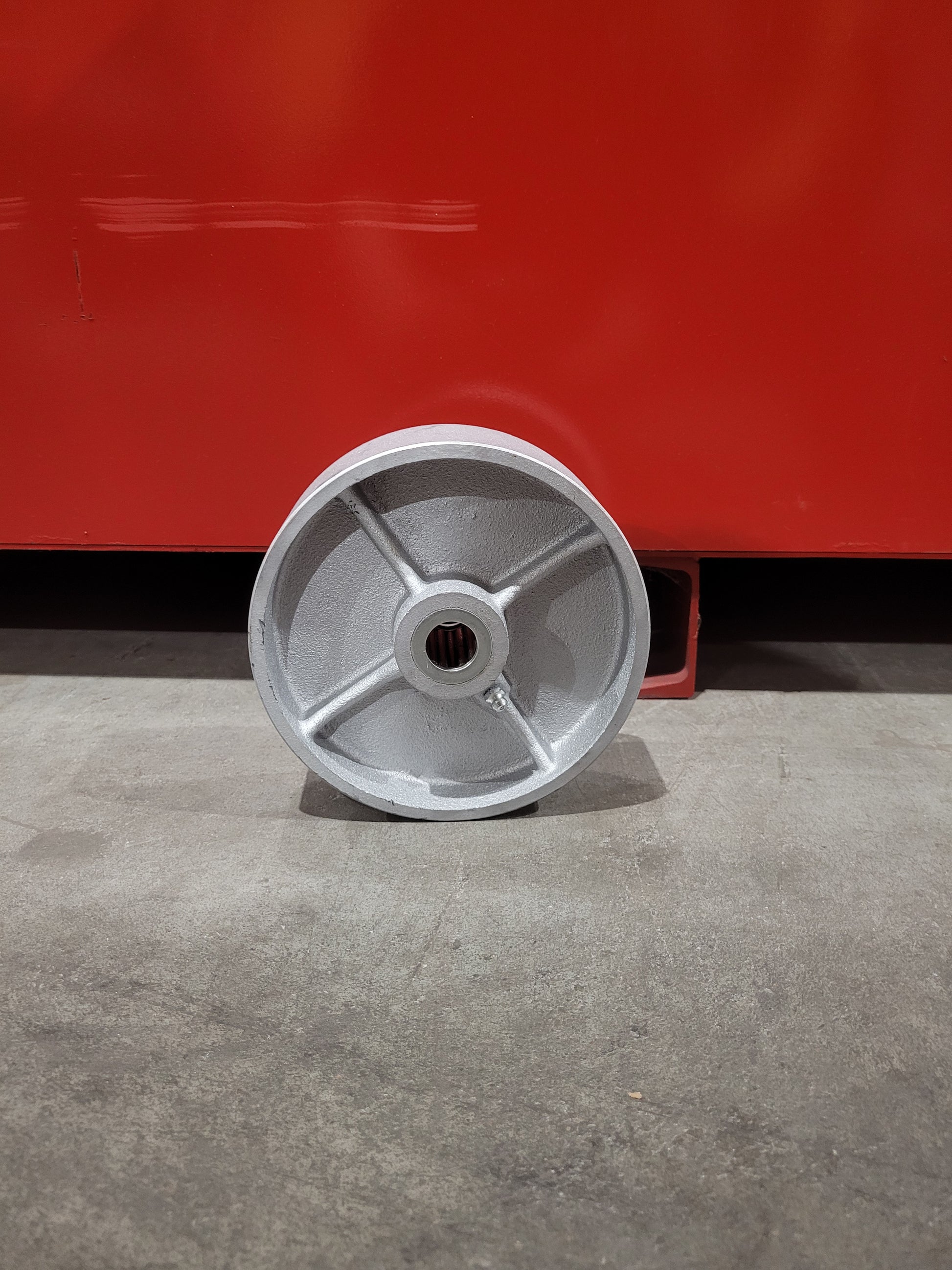

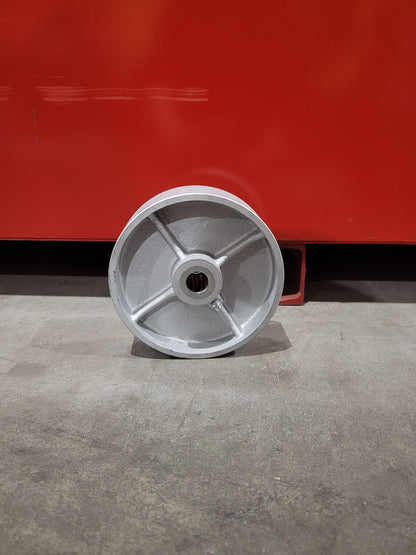

Self-Dumping Hopper Caster Kit | Steel Wheels
Add mobility to your MECO self-dumping hopper with this steel caster kit. Each kit includes a set of 4 casters — two swivel and two rigid — with roller bearings throughout for smooth, controlled movement. Compatible with all MECO self-dumping hoppers through 2½ cubic yards.
Is Steel Right for Your Floor?
Best for: Rough, uneven, or high-temperature industrial floors.
Benefits: Maximum durability and load capacity, longest service life in harsh environments.
Consider alternatives if: Smooth finished floors where marks or noise are a concern.
Available Configurations
| Model | Wheel Size (Dia. x Width) | Set Capacity | Price |
|---|---|---|---|
| CK620SS | 6" x 2" | 4,000 lbs | $159.99 |
| CK625SS | 6" x 2.5" | 6,000 lbs | $309.99 |
| CK820SS | 8" x 2" | 4,000 lbs | $189.99 |
| CK825SS | 8" x 2.5" | 6,000 lbs | $359.99 |
Select your wheel size using the option above. Larger diameter (8") wheels roll more easily over floor imperfections. Wider wheels (2½") support higher loads. Match the set capacity to your hopper’s loaded weight.
Installation
Casters can be factory-installed (bolted to the hopper base before shipment) when ordered at the same time as a hopper — no extra charge. If ordering separately for an existing hopper, casters are field-installable with standard tools. All swivel casters feature a hardened double-ball raceway and 3/4" kingpin for maximum durability.
Questions? Call (929) 577-4339 or email support@mywarehouseworld.com.
Specifications
| Model | Wheel Diameter | Wheel Width | Set Capacity | Kit Weight |
|---|---|---|---|---|
| CK620SS | 6" | 2" | 4,000 lbs | 46 lbs |
| CK625SS | 6" | 2.5" | 6,000 lbs | 60 lbs |
| CK820SS | 8" | 2" | 4,000 lbs | 51 lbs |
| CK825SS | 8" | 2.5" | 6,000 lbs | 81 lbs |
| Specification | Details |
|---|---|
| Wheel Composition | Steel |
| Casters Per Kit | 4 (2 swivel, 2 rigid) |
| Bearing Type | Roller bearings on all wheels |
| Swivel Caster Raceway | Hardened double-ball raceway |
| Kingpin | 3/4" diameter |
| Compatible Hoppers | MECO self-dumping hoppers through 2½ cubic yards |
| Installation | Factory-installed or field-installed |
| Made In | USA — MECO Omaha, Omaha, NE |
Capacities are based on evenly distributed loads across all 4 casters.
Wheel Guide
Not sure which wheel type is right for your operation? Here’s a quick comparison:
| Composition | Best For | Max Set Capacity |
|---|---|---|
| Mold-On Rubber | Smooth/finished floors, noise-sensitive areas | 2,700 lbs |
| Steel | Rough industrial floors, extreme durability | 6,000 lbs |
| Phenolic | Chemical/oil environments, high capacity | 6,000 lbs |
| Polyurethane | General purpose, non-marking | 5,300 lbs |
